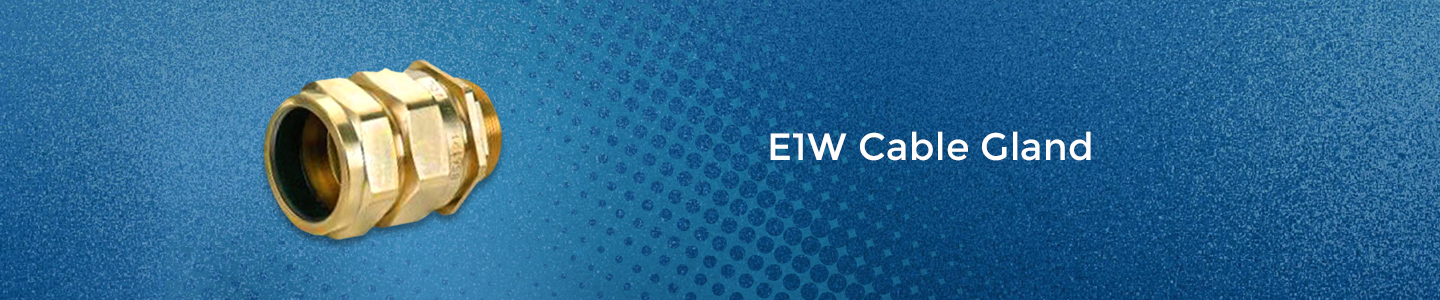

E1W Cable Gland
Suppliers, Distributors, and Exporters of E1W Cable Glands
We Supply, Distribute and Export a wide range of E1W Cable Glands to our numerous clients in India and Globally. Our range of Cable Glands is well known among the clients for its optimum performance, superior finish, and strength.
INTRODUCTION
E1W Cable Gland is used with all types of SWA extruded bedding cable where it is essential to produce IP 66 seal on to the outer sheath. This also produce an IP 66 or explosion proof seal on inner sheath. It provides seals on to both inner sheath and outer sheath of the cable. These are also available with CIEL (cast integral earth lug)
APPLICATIONS
For use with all types of SWA extruded bedding cable where it is essential to produce IP 66 seal on to the outer sheath and also produce an IP 66 or explosion proof seal on inner sheath. It provides seals on to both inner sheath and outer sheath of the cable.
DESIGN FEATURES
2 part Armour / Earth Lock, Knurled Armour Lock produces a low resistance earth clip, Inner and outer displacement, Rated at IP 66 in conjunction with entry thread seal. As available in CIEL (cast integral earth lug) for orders add" C" to prod. code.
| Size | Cable Dimensions Accommodate | Gland Dimensions | Dowell’s Prod. Code | ||||||
| Under Armour Dia A Max. |
Overall Dia. B Max. |
Armour wire dia C | ISO Entry Thread | Approx length from shoulder | Hexagon Size | ||||
| mm | mm | mm | Dia | Length | Across flat | Across corners | |||
| D mm | E mm | F mm | G mm | H mm | |||||
| 16 | 8.6 | 13.5 | 0.9 | 16 | 10 | 40 | 20 | 23 | DE1W 16 |
| 20 S | 12.5 | 15 | 0.90/1.25 | 20 | 10 | 45 | 24 | 28 | DE1W 20 S |
| 20 | 14.4 | 20.5 | 0.90/1.25 | 20 | 10 | 45 | 27 | 31 | DE1W 20 |
| 25 S | 17.8 | 23.8 | 1.25/1.60 | 25 | 10 | 50 | 31 | 34 | DE1W 25 S |
| 25 | 20.4 | 27 | 1.25/1.60 | 25 | 10 | 50 | 34 | 38.5 | DE1W 25 |
| 32 | 26.5 | 33 | 1.60/2.00 | 32 | 10 | 55 | 41.5 | 46.5 | DE1W 32 |
| 40 S | 31 | 37 | 1.60/2.00 | 40 | 10 | 60 | 45 | 50 | DE1W 40 S |
| 40 | 32.5 | 40.8 | 1.60/2.00 | 40 | 15 | 60 | 49 | 54 | DE1W 40 |
| 50S | 37.8 | 48 | 2.00/2.50 | 50 | 15 | 65 | 58 | 65 | DE1W 50 S |
| 50 | 44 | 53.5 | 2.00/2.50 | 50 | 15 | 65 | 62.3 | 69.5 | DE1W 50 |
| 63S | 50.5 | 60.5 | 2.5 | 63 | 15 | 70 | 70 | 78 | DE1W 63 S |
| 63 | 56.5 | 65.5 | 2.5 | 63 | 15 | 70 | 76.3 | 85 | DE1W 63 |
| 75S | 62.5 | 72 | 2.5 | 75 | 15 | 75 | 85 | 95 | DE1W 75 S |
| 75 | 67.5 | 78.5 | 2.50/3.15 | 75 | 15 | 75 | 90.5 | 99 | DE1W 75 |
| 90 | 80 | 94 | 3.15 | 90 | 20 | 90 | 112 | 125 | DE1W 90 |
FAQ
PRICING
Contact us for more information on E1W Cable Glands or to discuss your requirements. Enquiries are solicited for India, UAE and Africa on following Email id web@aakashpower.com
